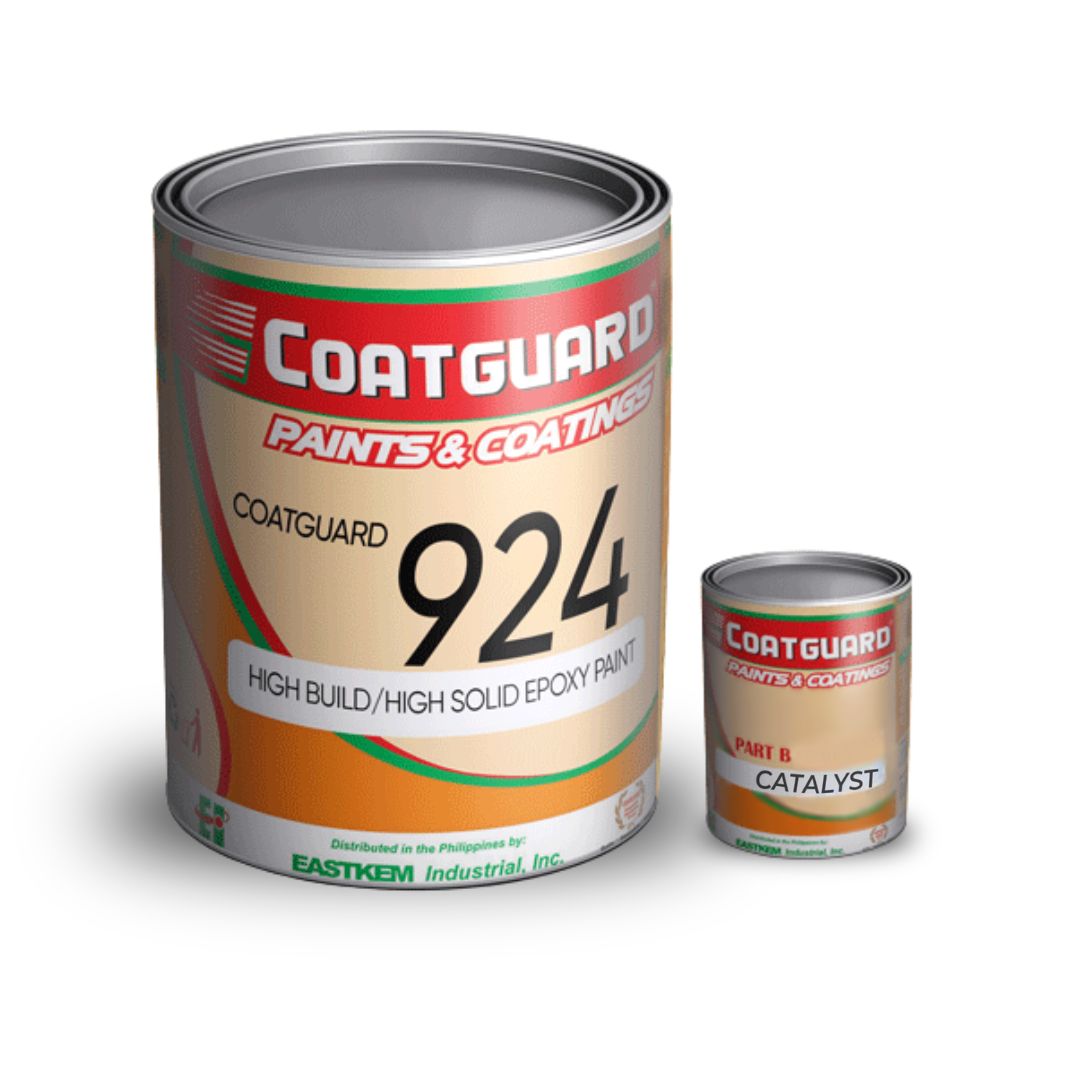

COATGUARD 924

COATGUARD 924

HIGH BUILD/HIGH SOLID EPOXY PAINT

Coatguard 924 is a high-build, high-solids, two-component self-leveling epoxy topcoat engineered for seamless, high-performance concrete flooring. This industrial-grade coating is designed to create a smooth, durable, and hygienic surface with superior mechanical strength and chemical resistance.

Ideal for heavy-duty environments like cleanrooms, warehouses, food processing facilities, manufacturing plants, and pharmaceutical production areas, Coatguard 924 delivers a dust-free, non-porous finish that can withstand continuous foot traffic and equipment movement.

Product Overview

Coatguard 924 High-Build Self-Leveling Epoxy Topcoat is formulated to deliver the final protective and aesthetic layer in multi-coat epoxy flooring systems. With a self-leveling formula and high solids content, this topcoat forms a thick, uniform film in a single application, eliminating uneven surfaces and joint lines.

It resists abrasion, impact, oil, water, cleaning agents, and harsh chemicals, making it ideal for facilities requiring both durability and hygiene. Available in customizable gloss levels and color options, Coatguard 924 enhances both function and appearance for industrial and commercial flooring systems across the Philippines.

Key Features:

  • Self-leveling formula for a smooth, seamless finish

  • High-build thickness achieved in a single application

  • Superior resistance to chemicals, oils, and cleaning agents

  • High solid content for long-term durability and performance

  • Easy-to-clean, non-porous surface ideal for hygiene-sensitive environments

  • Designed to withstand heavy foot and equipment traffic

  • Customizable colors and gloss levels to suit facility requirements

Technical Data

PROPERTIES

Property
 Value
Color
Any Color.
Finish
Gloss, Self-Leveling
Flash Point (Pensky-Martens Closed Cup)
23°C
Calculated Volume Solid
88% ± 2%
Recommended Film Thickness
 12-16mils , 300–400 microns
Calculated Coverage per Gallon
6.2m²/gal at 24mils microns, 600microns
Pot Life
30-50 minutes at 24°C
Application Temperature
20°C – 30°C (Material)
10°C – 43°C (Surface)
10°C – 38°C (Ambient)
Mix Ratio
3:1 by volume (Part A : Part B)
Shelf Life
12 months (unopened, stored properly, mixed thoroughly before use)
Viscosity (ASTM D4212)
42-43 sec
Adhesion (ASTM D3359-02)
5B – 0%
Thermal Shock
Unaffected 5 Cycles – 20°C to – 95°C
Hardness
Excellent. Konig Pendulum -95 ± seconds; DIN Standard 53157 (Glass Standard 250 seconds).
Compatibility With Other Coatings
May be applied over catalyzed epoxy primer, phenolic and other as per recommendations.
Storage Conditions
Store in cool, dry area between 4–43°C, away from sunlight and moisture.
Packaging
Gallon Kit (3.785 liters) , Pail (4 Gallons)
Temperature Resistance (Cured)
Up to 121°C sustained, 148.8°C intermitted
Drying Time (Touch)
2–3 hours at 32°C
Drying Time (Dry Hard)
16–24 hours
Drying Time (Final Cure)
7 days



CHEMICAL RESISTANCE GUIDE

Chemical Type
 Imersion
Splash & Spillage
Fumes
Acids
Very Good
Excellent
Excellent
Alkalies
Very Good
Excellent
Excellent
Solvents
Excellent
Excellent
Excellent
Fuels
Excellent
Excellent
Excellent
Oils
Excellent
Excellent
Excellent
Salts
Excellent
Excellent
Excellent
Water
Excellent
Excellent
Excellent



❗LIMITATIONS: Not recommended for concrete less than one month, any unsound substrate, and substrate with moisture content exceeding 3% as per ASTM D4263, non-hardening sealants and caulking, form- release agents containing wax or oil. Silicone-coated surfaces, expansion joint, soluble stains, asphalt surfaces and areas where water seepage exists.

Application Guide

Surface Prep (After Midcoat)

  • Ensure the midcoat (e.g., Coatguard 114) is fully cured, sanded using manual sanding or a polisher/burnisher Grit #100, dry, and free of dust, dirt, and contaminants.

  • Vacuum or mop the surface thoroughly before application.

  • Remove any sharp ridges or debris that could affect flow or finish.

Mixing

  • Mix Part A and Part B as per specifications.

  • Use a slow-speed mechanical mixer to ensure a fully blended, homogeneous mix.

  • Pre-measured kits are designed for direct transfer and mixing:

    • For 1:1 kits, both cans are half-filled — transfer Part B into Part A.

    • For 1:3 kits, the larger can is partially filled to allow full mixing once Part B is added.

Application

  • Pour the mixed material onto the floor in ribbon-like sections.

  • Use a notched trowel or squeegee to spread evenly across the surface.

  • Use a spiked roller immediately after to remove air bubbles and help with leveling.

  • Start from the farthest side of the room and move toward the exit.

  • Mask off baseboards, walls, and other areas to avoid accidental coating.

  • Maintain a wet edge during application to prevent lap marks or dry joints.

System Use

Industrial Floor – High Build Self-Leveling Epoxy System

Purpose: A heavy-duty epoxy system engineered for seamless, chemical-resistant, and high-performance flooring. It’s ideal for facilities that demand durability and easy maintenance under constant foot or equipment traffic.

Best Used In:

  • Manufacturing Plants

  • Warehouses

  • High-Traffic Hallways

  • Industrial Processing Areas

System Composition:
